Cisco Catalyst chassis, 10 slots, 13 RU C9410R=
NEW open box, recertified equipment with manufacturer warranty options.
10 products sold in last 12 hours
Selling fast! Over 16 people have in their cart

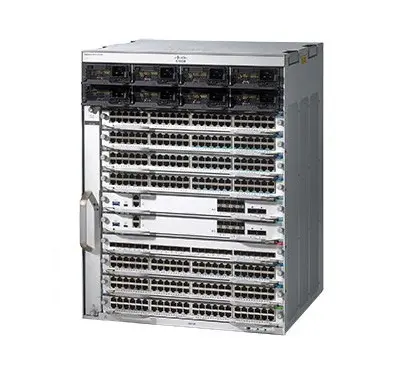

Cisco Catalyst 9400 chassis with 10 slots
3 people are viewing this right now
| TECHNICAL SPECIFICATIONS | |
|---|---|
| Total number of slots | 10 |
| Number of line card slots | 8 |
| Number of supervisor slots | 2 |
| Slots reserved for the supervisor (Linear cards are not supported in these slots) |
5 and 6 |
| Supported supervisors | C9400-SUP-1 |
| Maximum PoE per slot | 2880W |
| Maximum performance | Up to 480 Gbps per slot |
| Maximum port density |
|
| Number of compartments for cooling fans | 1 |
| Number of power supply bays | 8 |
| Built-in PoE | Yes |
| Supported power supplies (sold separately) |
3200W AC |
| Power type |
AC 100-240 V |
| Input current (nominal) |
16A at 100V AC 16A at 200V AC |
| Output current |
55 V at 58.0 A / 28.36 A (230/115 V AC) 3.3 V at 3.0 A |
| Heat dissipation |
950 BTU / hour x N N = number of power sources |
| Waiting time |
20 msec |
| Hot-swappable |
Yes |
| Average uptime |
300,000 hours |
| Operating temperature |
from -5 to +40 °C |
| Storage temperature |
From -40° to 70°C |
| Relative humidity |
From 10 to 95%, without condensation |
| Working height |
From -60 to 3000 m |
| Installation type |
Rack-mounted/floor-standing |
| Height RM UNIT |
13U |
| Dimensions (H x W x D) |
57.43×43.97×31.70 cm |
| Weight |
29.48 kg |
| Guarantee |
Cisco Catalyst 9400 Series Switches come with Cisco Enhanced Limited Lifetime Warranty (E-LLW), which includes next business day (NBD) hardware replacement, 90 days of 8×5 support, and 24×7 access to Cisco Technical Assistance Center (TAC). |
| Compliance with regulatory requirements |
CE |
Security Certificates
|
|
| ROHS compliant |
ROHS5 |
| Manufacturer |
Cisco |
Additional information
| Weight | 5 kg |
|---|---|
| Brand1212 | Cisco |
